主動喇叭 PRX800W Series
產品說明
JBL PRX800W 系列是同級最先進的 PA。 Wi-Fi 技術和複雜的 DSP 可以通過 PRXConnect 應用程序完全控制系統調整和性能。
一個高效的 1500 瓦 D 類放大器和專利的 JBL DifferentialDrive®技術可提供一流的功率和減輕重量。
堅固的全木櫃具有重新設計的輸入面板和通用電源,PRX800W 旨在為樂隊,DJ 等提供傳奇的 JBL 聲音,代表了下一代智能現場擴音。
PRX812W
PRX815W
PRX815XLFW
PRX818XLFW
一個高效的 1500 瓦 D 類放大器和專利的 JBL DifferentialDrive®技術可提供一流的功率和減輕重量。
堅固的全木櫃具有重新設計的輸入面板和通用電源,PRX800W 旨在為樂隊,DJ 等提供傳奇的 JBL 聲音,代表了下一代智能現場擴音。

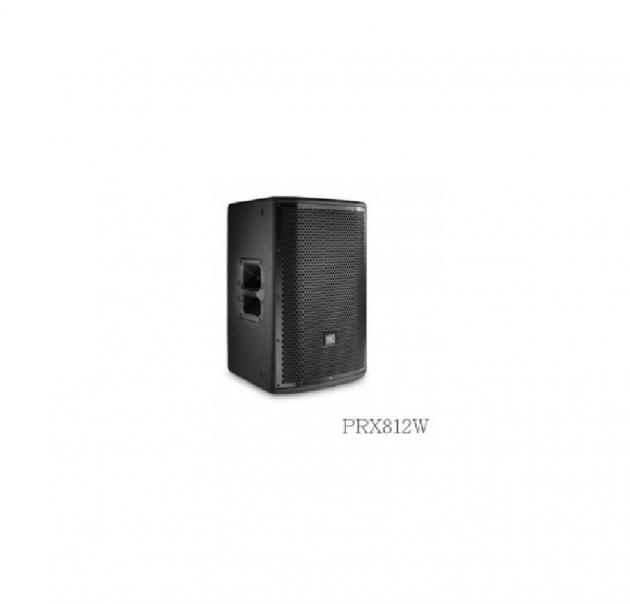

PRX812W
- 喇叭類型:12”雙向低音反射主動式喇叭
- 最大輸出音壓: 137 dB
- 頻率範圍 (-10 dB):Main: 44.8 Hz – 20 kHz Monitor: 44.8 Hz – 20 kHz
- 頻率響應(±3 dB):Main: 55.7 Hz – 20 kHz Monitor: 56.5 Hz – 20 kHz
- 輸入連接器:2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input
- 輸入阻抗:20K Ohms (balanced), 10K Ohms (unbalanced)
- 訊號指示器 Limit:Yellow LED indicates peak output has been reached and dsp limiter is acting
- Signal:Green LED indicates signal present
- Power: Blue indicates system has power and ready to pass audio
- 等化器:User selectable presets for Main or Monitor position, Advanced EQ settings available using Wi-Fi and PRX Connect application
- 動態控制(輸入):dbx Type IVTM limiter circuit
- 分頻點:1.85 kHz
- 擴大機類型:Class D
- 額定功率:1500W (750W x 2)
- 交叉電源輸入:100V - 240V ~ 50/60 Hz
- 低音驅動:1 x JBL 272G 305 mm (12 in) woofer
- 高音驅動:1 x JBL 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver
- 覆蓋角度:90° x 50°
- 方向性指數(DI):10.2 dB
- 方向性(Q):10.4
- 尺寸(H x W x D):59.9 cm x 38.5 cm x 34.1 cm
- 淨重:18.1Kg
- 總重量:21.2Kg

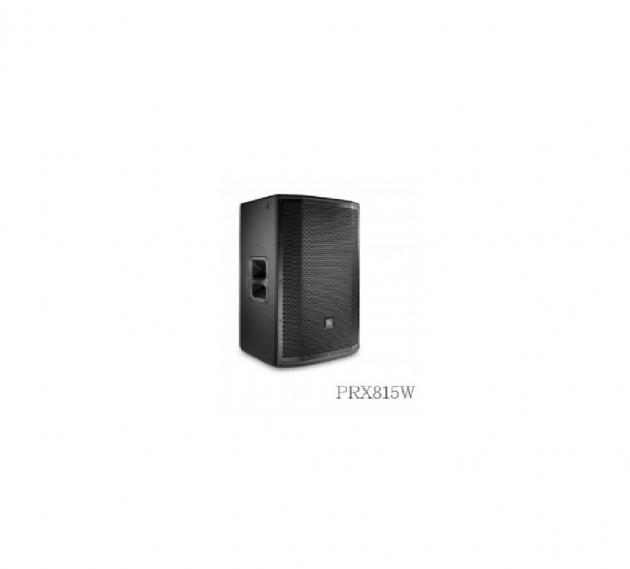

PRX815W
- 喇叭類型:15”雙向低音反射主動式喇叭
- 最大輸出音壓:135 dB 峰值
- 頻率範圍 (-10 dB):Main: 42.9 Hz - 19.5 kHz Monitor: 43.6 Hz - 19.3 kHz
- 頻率響應(±3 dB):Main: 58.1 Hz - 17.2 kHz Monitor: 60.7 Hz - 16.7 kHz
- 輸入連接器:2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input
- 輸入阻抗:20K Ohms (balanced), 10K Ohms (unbalanced)
- 訊號指示器 Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting Signal: Green LED indicates signal present Power:Blue indicates system has power and ready to pass audio
- 等化器:User selectable presets for Main or Monitor position, Advanced EQ settings available using Wi-Fi and PRX Connect application
- 動態控制(輸入):dbx Type IVTM limiter circuit
- 分頻點:2 kHz
- 擴大機類型:Class D
- 額定功率:1500W (750W x 2)
- 交叉電源輸入:100V - 240V ~ 50/60 Hz
- 低音驅動:1 x JBL 275G (15 in) woofer
- 高音驅動:1 x JBL 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver
- 覆蓋角度:90° x 50°
- 方向性指數(DI):10.2 dB
- 方向性(Q):10.4
- 尺寸(H x W x D):70.1 cm x 44.6 cm x 35.9 cm
- 淨重:20.86 kg
- 總重量:26.3 kg

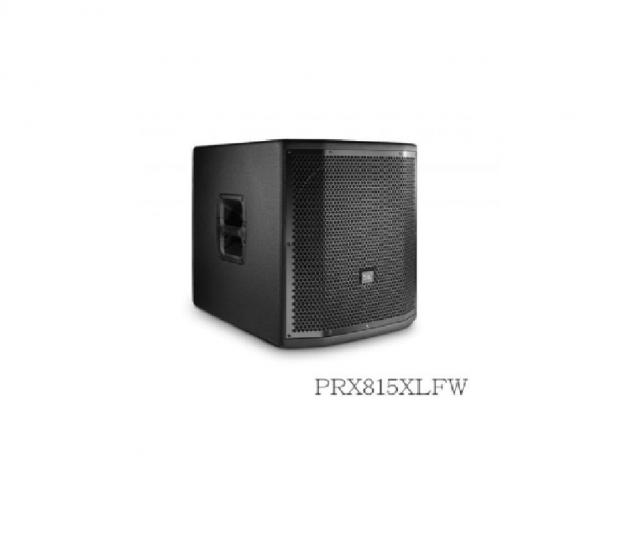

PRX815XLFW
- 喇叭類型:15”低音主動式喇叭
- 最大輸出音壓:131 dB 峰值
- 頻率範圍 (-10 dB):36 Hz - 98 Hz
- 頻率響應(±3 dB):40 Hz – 87 Hz
- 輸入連接器:Two Balanced female XLR/ 1/4” combo connectors
- 輸入阻抗:20K Ohms (balanced)
- 訊號指示器:Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting
- Signal:Green LED indicates signal present
- Power:Blue indicates system has power and ready to pass audio.
- 動態控制(輸入):dbx Type IVTM limiter circuit
- 系統低通:80 Hz DSP
- 擴大機類型:Class D
- 額定功率:1500W
- 交叉電源輸入:100V - 240V ~ 50/60 Hz
- 低音驅動:1 x JBL 2275H 15 in woofer
- 尺寸(H x W x D):54.8 cm x 44.6 cm x 57.2 cm
- 淨重:26.3 kg
- 總重量:30.3 kg

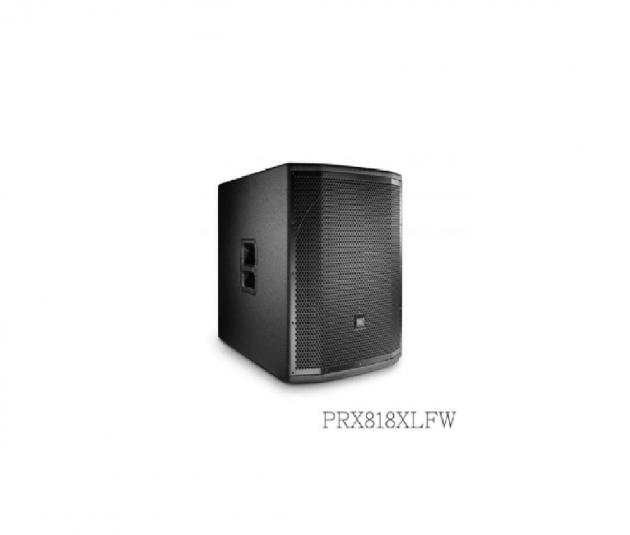

PRX818XLFW
- 喇叭類型:18”低音主動式喇叭
- 最大輸出音壓:134 dB 峰值
- 頻率範圍 (-10 dB):30 Hz - 103 Hz
- 頻率響應(±3 dB):35 Hz – 87 Hz
- 輸入連接器:Two Balanced female XLR/ 1/4” combo connectors輸入阻抗:20K Ohms (balanced)
- 訊號指示器:Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting
- Signal: Green LED indicates signal present
- Power: Blue indicates system has power and ready
- 動態控制(輸入):dbx Type IVTM limiter circuit
- 系統低通:80 Hz
- 循環交叉頻率:80Hz Digital 24db/octave Linkwitz-Riley Filter
- 擴大機類型:Class D
- 額定功率:1500W
- 交叉電源輸入:100V - 240V ~ 50/60 Hz
- 低音驅動:1 x JBL 2278G 460mm 18 in woofer
- 尺寸(H x W x D):69.2 cm x 52.3 cm x 72.4 cm
- 淨重:36.28 kg
- 總重量:45.0 kg
