類比混音機 HD W8FX
產品說明
1.麥克風W6FX/2隻麥克風輸入/2組立體輸入, W8FX/4隻麥克風輸入/2組立體輸入
2.24bit/16組DSP效果器選擇
3.內置48V幻象電源控制
4.內置藍芽MP3播放功能
5.克風輸入 Mic input electronically balanced, discrete input configuration Frequency response 10 Hz to 200 kHz
Gain range +14 dB to +60 dB
SNR 120dB E.I.N.
6.線性輸入 Line input Electronically balanced Frequency response 10Hz to 130kHz
Gain range -6 dB to +38 dB
SNR 95dB E.I.N.
7.立體通道 STEREO CHANNELS
Frequency response 10 Hz to 70 kHz
Gain range Line: -8 to +15 dB / Mic: +13 to 60 dB
SNR Line: 96 dB / Mic: 104 dB E.I.N.
8.EQ 等化EQUSLIZATION
LOW 70 Hz, ± 15 dB
MID 2.5 kHz, ± 15 dB
HI 12 kHz, ± 15 dB
9.主混音MAIN MIX
Main Outputs +30 dBu balanced / +25 dBu unbalanced
AUX Send +25 dBu unbalanced
Tape Out +25 dBu unbalanced
Phones Output +15 dBu / 150
10.電源 Power 110V-220V/50Hz/60Hz
11.尺寸 Dimenions (DXWXH)mm
W6FX (W)210mm X (H)250mm X (D)72mm W8FX (W)260mm X (H)250mm X (D)72 mm
12.重量 Weight
W6FX：3.0 Kg W8FX：3.5 Kg

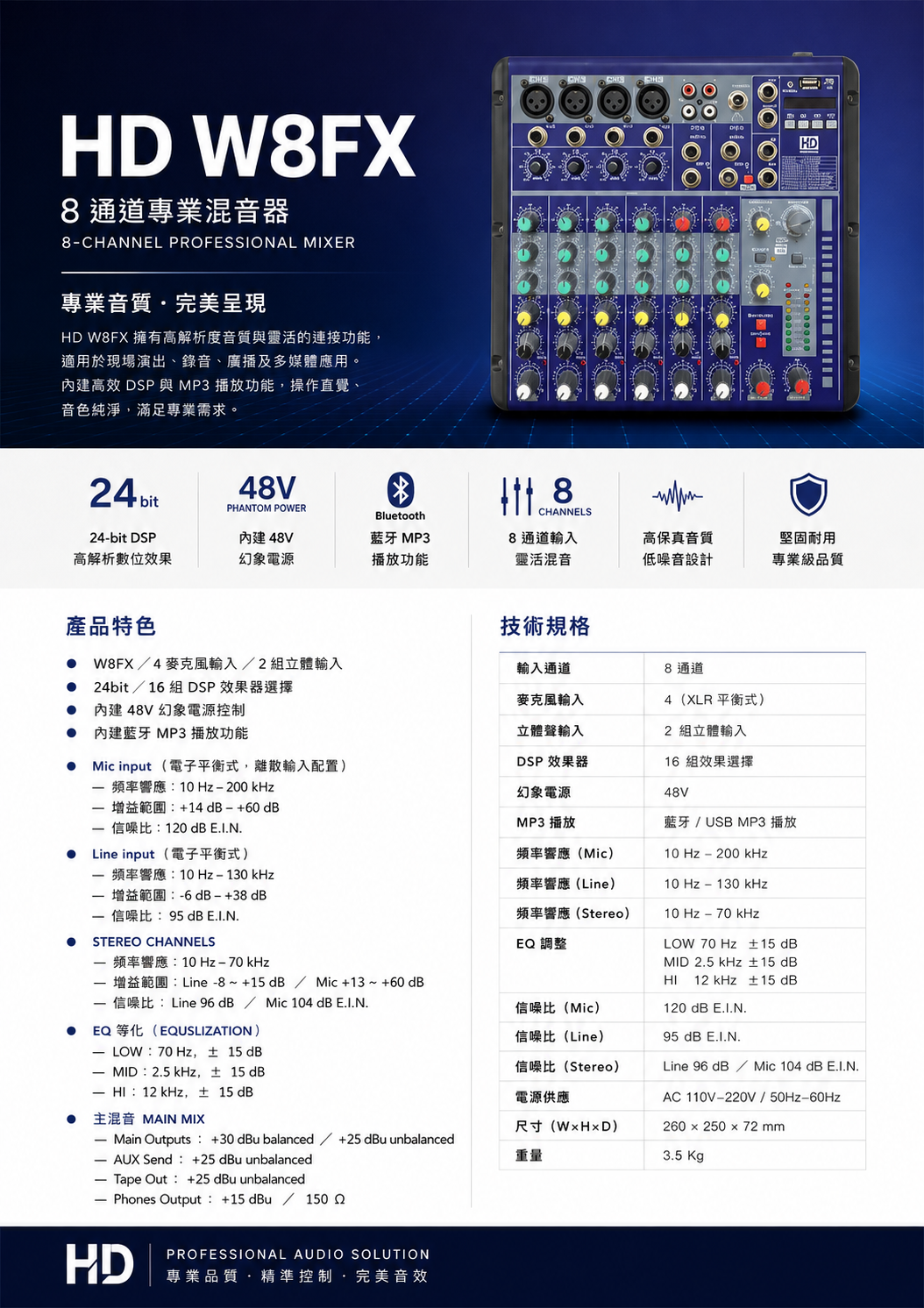

產品目錄下載
因產品不斷研究發展，其設計、規格若有變更，恕不另行通知。
